Description
Features:
- See highly detailed, easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat in real time, even when your boat is stationary
- Easily adjust the transducer to fit your fishing techniques; point forward to see around your boat, or point down to see directly below your boat
- See incredibly sharp real-time scanning sonar images up to 200’ down and away
- Attitude Heading Reference System (AHRS) stabilizes sonar view on chartplotter screen, even in rough conditions
- Simple plug-and-play Garmin Marine Network connector makes it easy to install and seamlessly integrate with your compatible Garmin chartplotter
Connections:
- Garmin Marine Network™ Ports: 2
- NMEA 2000® Port: 1
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
- Video Input Ports: 1 BNC
- Video Output Ports: None
- Wireless Connectivity: Yes
Specifications:
- Physical dimensions:
- GLS 10 sonar black box: 9.6” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm);
- LVS32 transducer: 5.4” x 3.8” x 1.8” (13.7 x 9.7 x 4.6 cm)
- Weight:
- GLS 10 sonar black box: 4.3 lbs (2.0 kg);
- LVS32 trasnducer: 1.9 lbs (0.9 kg)
- Water rating: IPX7
- Garmin Marine Network™ ports: 1 (small connector)
- Temperature range: Operating: -15 C to 70 C; Non-operating: -40 C to 85 C
Sonar Features & Specifications
- Frequencies supported: 530 – 1,100 kHz
- Transmit power: 500W
- Maximum depth: Down and Forward: 200’ (61.0M)
Electrical
- Power input: 10-32 V
- Power usage: 21 W typical, 58 W max
- Fuse: 7.5 A
What’s In The Box?

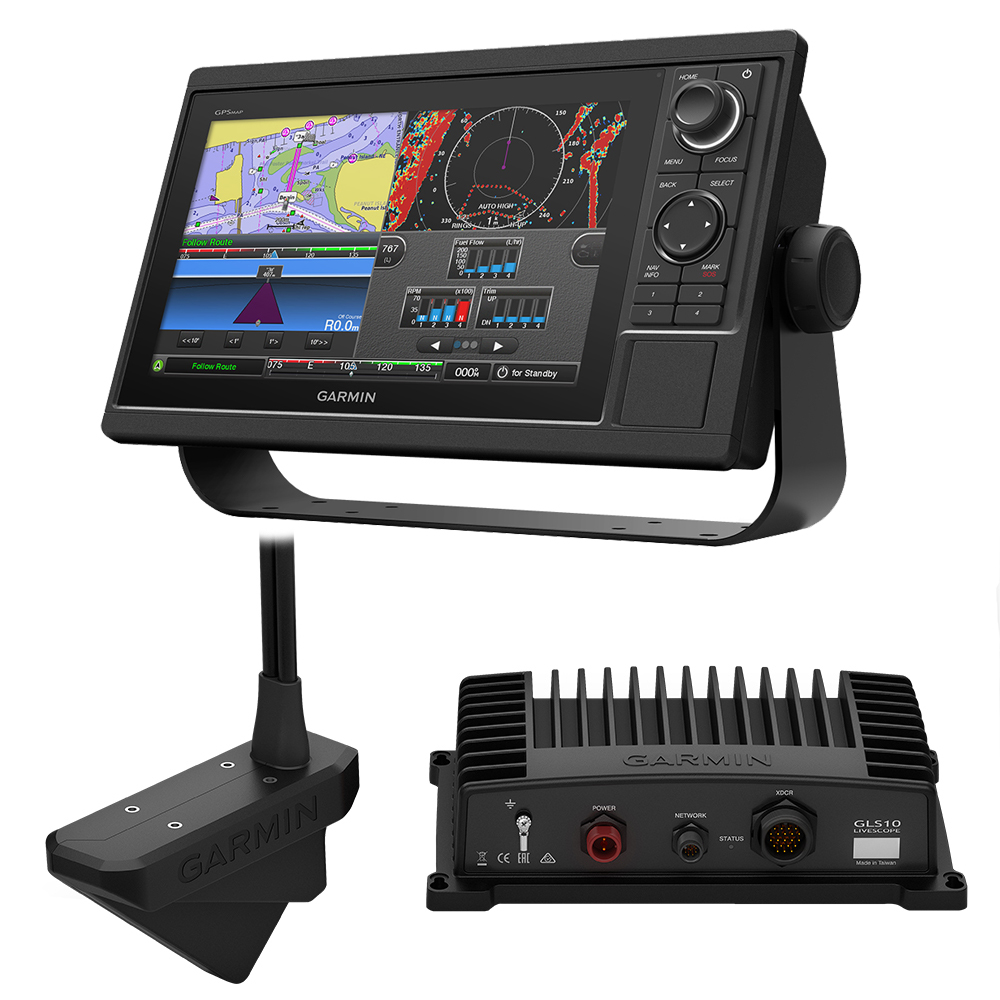

- LiveScope GLS 10 sonar black box
- Panoptix LVS32 transducer
- Trolling motor barrel mount
- Trolling motor shaft mount
- Transom mount
- Power cable
- 2 meter Garmin marine network cable, small connector
- Network adapter cable
- Mounting hardware
- Documentation
